A Colortex Barz linear baffle suspension assembly anchors to a grid system. The assembly uses DS/DXL fifteen-sixteenths-inch main tees in flat black two hundred five, supported by number twelve prestraightened galvanized hanger wires spaced at four feet on center with three minimum wraps. Lateral stability and positioning are maintained by splay wires spaced per local code, connected to anchor devices rated for a minimum of one hundred pounds per hanging point. Colortex Barz sections attach to the main tees using swivel-clip bases and swivel-clip brackets with lock screws for adjustable spacing. A lighting fixture integrates into the baffle assembly where required, and baffle spacing is adjusted and locked in position with lock screws.

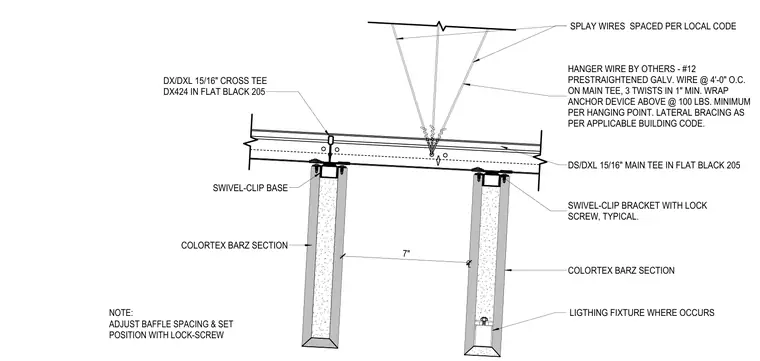

NOTE: ADJUST BAFFLE SPACING & SET POSITION WITH LOCK-SCREW SPLAY WIRES SPACED PER LOCAL CODE LIGTHING FIXTURE WHERE OCCURS SWIVEL-CLIP BASE COLORTEX BARZ SECTION COLORTEX BARZ SECTION SWIVEL-CLIP BRACKET WITH LOCK SCREW, TYPICAL. DX/DXL 15/16" CROSS TEE DX424 IN FLAT BLACK 205 DS/DXL 15/16" MAIN TEE IN FLAT BLACK 205 HANGER WIRE BY OTHERS - #12 PRESTRAIGHTENED GALV. WIRE @ 4'-0" O.C. ON MAIN TEE, 3 TWISTS IN 1" MIN. WRAP ANCHOR DEVICE ABOVE @ 100 LBS. MINIMUM PER HANGING POINT. LATERAL BRACING AS PER APPLICABLE BUILDING CODE. CL 7"
