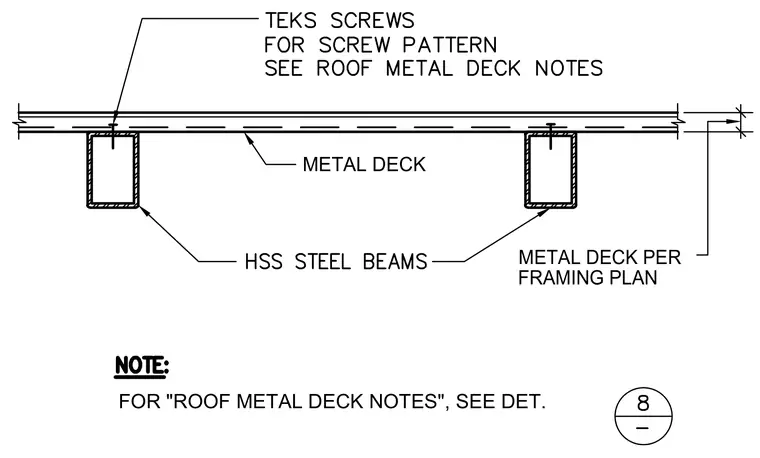

A profiled metal deck spans across hollow structural section steel beams and is secured with self-tapping Teks screws at each support. The screw fastening pattern is referenced to the roof metal deck notes while the deck gauge and profile are sized per the structural framing plan.
METAL DECK FOR "ROOF METAL DECK NOTES", SEE DET. FRAMING PLAN METAL DECK PER
