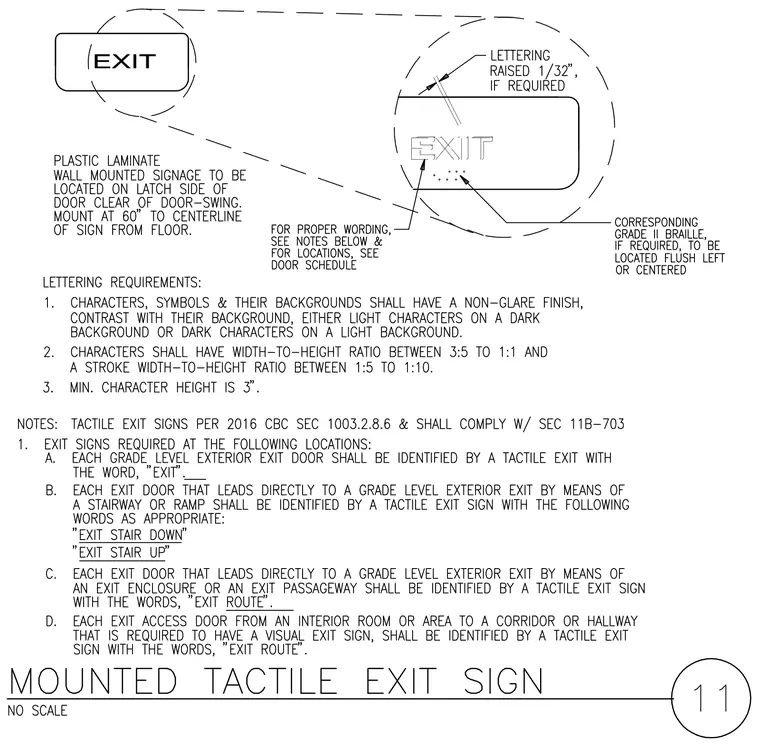

Plastic laminate wall-mounted signage is located on the latch side of the door clear of the door swing, mounted at 60 inches to the centerline of the sign from the floor. Characters, symbols, and their backgrounds feature a non-glare finish with contrasting light characters on a dark background or dark characters on a light background. Lettering is raised 1/32 inch with a minimum character height of 3 inches, accompanied by corresponding Grade II braille located flush left or centered. Tactile exit signs comply with 2016 California Building Code Section 1003.2.8.6 and Section 11B-703, required at grade-level exterior exit doors, stair or ramp exit doors, and exit enclosure or passageway doors.
