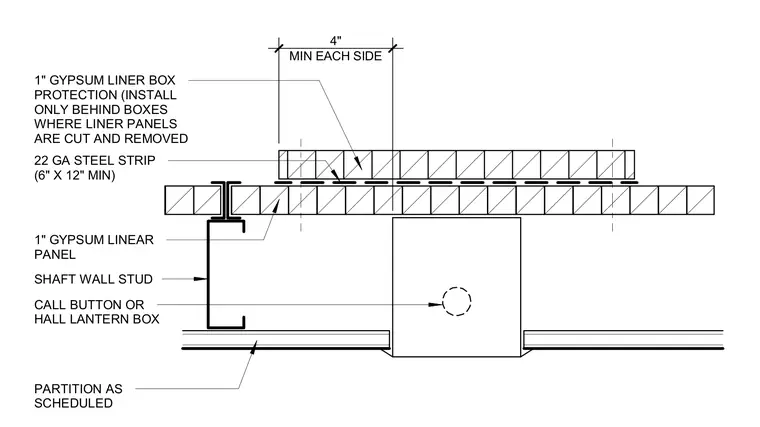

An elevator call button or hall lantern box penetrates a shaft wall constructed with shaft wall studs and 1-inch gypsum liner panels. A twenty-two gauge steel strip measuring six by twelve inches minimum is installed behind boxes where liner panels are cut and removed. An additional one-inch gypsum liner box protection is provided, extending a minimum of four inches on each side as scheduled.
MIN EACH SIDE 4" PARTITION AS SCHEDULED CALL BUTTON OR HALL LANTERN BOX 1" GYPSUM LINEAR PANEL 22 GA STEEL STRIP (6" X 12" MIN) 1" GYPSUM LINER BOX PROTECTION (INSTALL ONLY BEHIND BOXES WHERE LINER PANELS ARE CUT AND REMOVED SHAFT WALL STUD
