Standard cold-formed steel framing assemblies for interior non-bearing walls. The track splice configuration incorporates a C-channel track joined with a timber splice plate secured by three number ten screws on each side, with studs connected to the channel using two number ten screws typically. The framing penetration configuration consists of a C-channel track reinforced with trimmed and bent channel tabs connected to the studs with number ten screws. The door knob blocking configuration features a two-by-six flat wood block positioned at thirty-six inches above the floor between double twenty-gauge metal studs spaced at sixteen inches on center, finished with gypsum board and aluminum casing around an eighteen-gauge Rediframe door frame. The side view of the non-bearing stud wall anchorage details a deep-leg track secured to the structure with four powder-actuated fasteners, supporting a forty-five-degree angled brace attached with three screws at each flange clipped to form a shoe connecting to the top track.

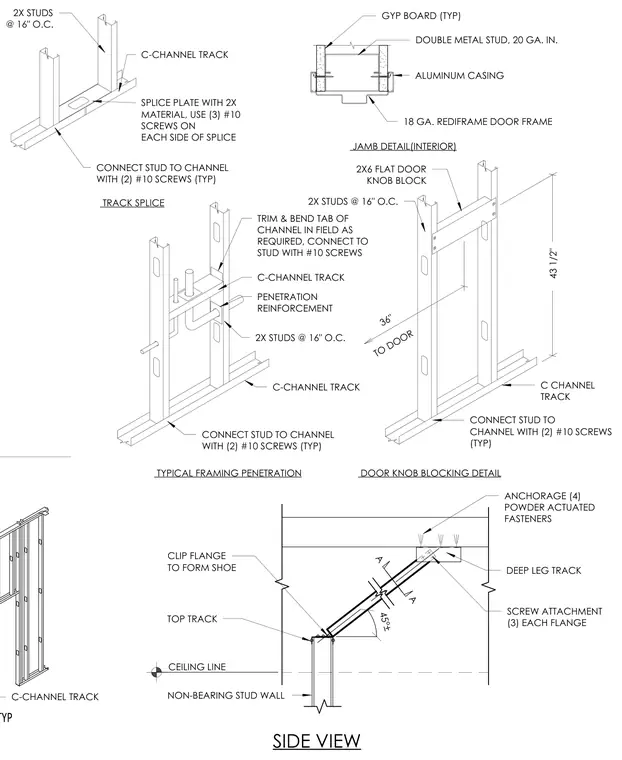

TRACK SPLICE DOOR KNOB BLOCKING DETAIL TYPICAL FRAMING PENETRATION JAMB DETAIL(INTERIOR) 2X STUDS @ 16" O.C. C-CHANNEL TRACK SPLICE PLATE WITH 2X MATERIAL, USE (3) #10 SCREWS ON EACH SIDE OF SPLICE CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) GYP BOARD (TYP) 18 GA. REDIFRAME DOOR FRAME DOUBLE METAL STUD, 20 GA. IN. ALUMINUM CASING 2X STUDS @ 16" O.C. 2X6 FLAT DOOR KNOB BLOCK 36" TO DOOR 43 1/2" CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) C CHANNEL TRACK C-CHANNEL TRACK CONNECT STUD TO CHANNEL WITH (2) #10 SCREWS (TYP) 2X STUDS @ 16" O.C. PENETRATION REINFORCEMENT C-CHANNEL TRACK TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS C-CHANNEL TRACK TYP 45°± SCREW ATTACHMENT (3) EACH FLANGE CLIP FLANGE TO FORM SHOE A TOP TRACK CEILING LINE A SIDE VIEW NON-BEARING STUD WALL ANCHORAGE (4) POWDER ACTUATED FASTENERS DEEP LEG TRACK
