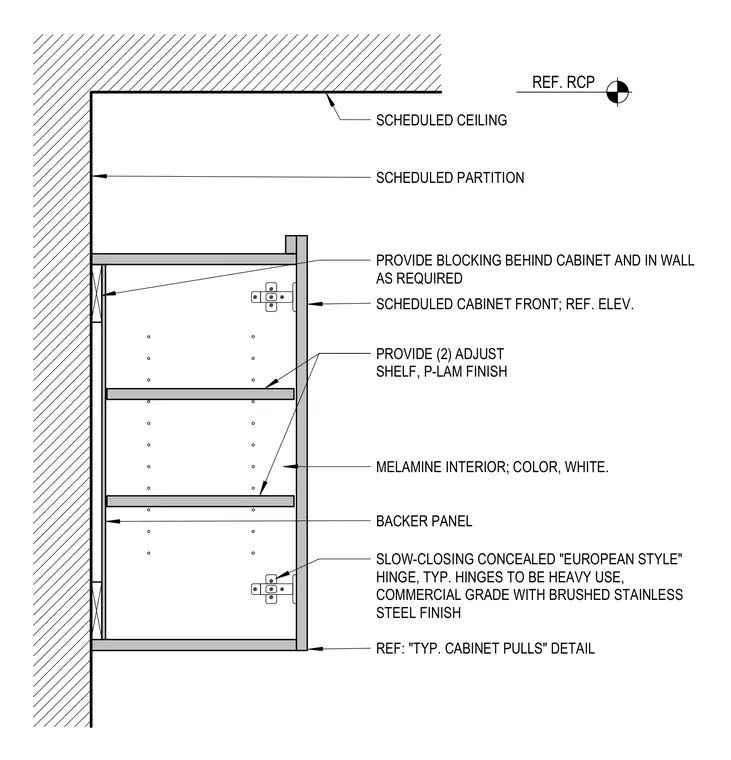

An upper wall-mounted cabinet is secured to a scheduled partition with required blocking installed behind the cabinet and within the wall. The cabinet features a white melamine interior and two adjustable plastic-laminate shelves. The scheduled cabinet front connects via heavy-use commercial-grade slow-closing concealed European-style hinges with a brushed stainless steel finish. A backer panel sits against the partition, and cabinet pulls are coordinated per a separate detail reference.
BACKER PANEL REF: "TYP. CABINET PULLS" DETAIL SCHEDULED PARTITION MELAMINE INTERIOR; COLOR, WHITE. SCHEDULED CABINET FRONT; REF. ELEV. SLOW-CLOSING CONCEALED "EUROPEAN STYLE" HINGE, TYP. HINGES TO BE HEAVY USE, COMMERCIAL GRADE WITH BRUSHED STAINLESS STEEL FINISH PROVIDE (2) ADJUST SHELF, P-LAM FINISH SCHEDULED CEILING REF. RCP PROVIDE BLOCKING BEHIND CABINET AND IN WALL AS REQUIRED
