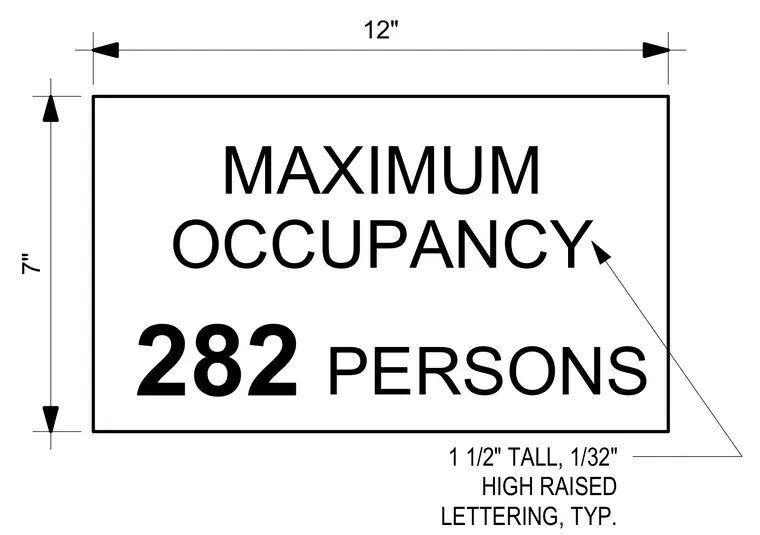

The rectangular sign measures 12 inches wide by 7 inches high and indicates a maximum occupancy of 282 persons. All text utilizes 1 1/2-inch tall, 1/32-inch high raised lettering typically. The layout specifies the text hierarchy with MAXIMUM OCCUPANCY on the upper lines and the occupant load number followed by PERSONS on the lower line.
7" 12" MAXIMUM OCCUPANCY PERSONS 282 1 1/2" TALL, 1/32" HIGH RAISED LETTERING, TYP.
