Ornamental Gate Graphics Detail

About this detail

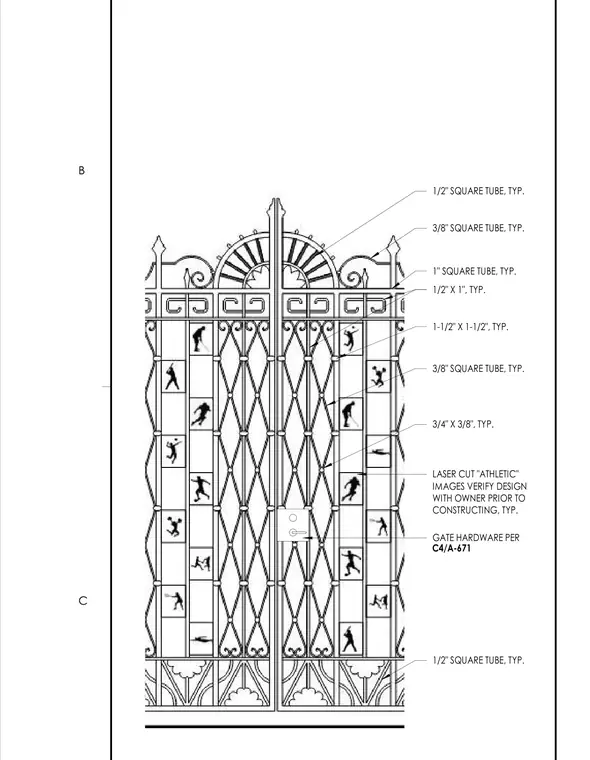

This ornamental gate assembly is constructed with one-and-one-half-inch by one-and-one-half-inch steel tubing framing, filled with intersecting rectangular and square steel tubing members of various sizes including one-inch, three-eighths-inch, and one-half-inch profiles. Laser-cut athletic images are integrated into the vertical panels, with the exact design subject to owner verification prior to construction. Gate hardware is provided per schedule C4/A-671.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
