A vertical insulated metal panel with a minimum R-15.2 continuous insulation rating is fixed to horizontal supports above a horizontal extruded aluminum louver system. The louver system is anchored back to a structural hollow structural section support sized per structural drawings. A joint between the panel and louver is sealed with sealant, backer rod, and a caulk backer with shims as required. An absorptive silence is connected to the louvered wall assembly, which interfaces with horizontal and vertical hollow structural section steel framing.

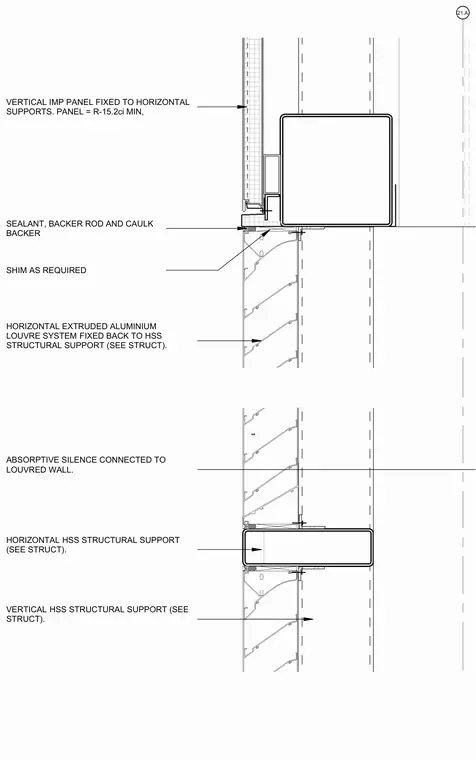

21.A SEALANT, BACKER ROD AND CAULK BACKER SHIM AS REQUIRED VERTICAL IMP PANEL FIXED TO HORIZONTAL SUPPORTS. PANEL = R-15.2ci MIN, HORIZONTAL EXTRUDED ALUMINIUM LOUVRE SYSTEM FIXED BACK TO HSS STRUCTURAL SUPPORT (SEE STRUCT). ABSORPTIVE SILENCE CONNECTED TO LOUVRED WALL. VERTICAL HSS STRUCTURAL SUPPORT (SEE STRUCT). HORIZONTAL HSS STRUCTURAL SUPPORT (SEE STRUCT).
