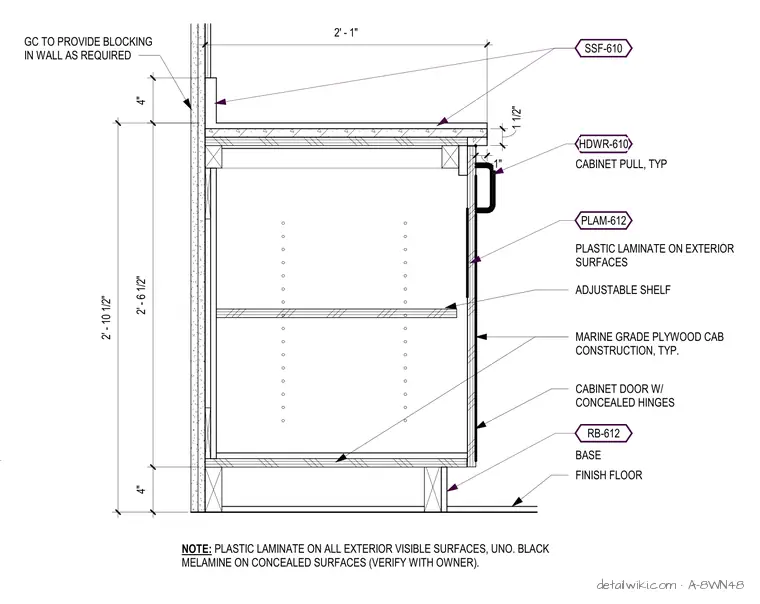

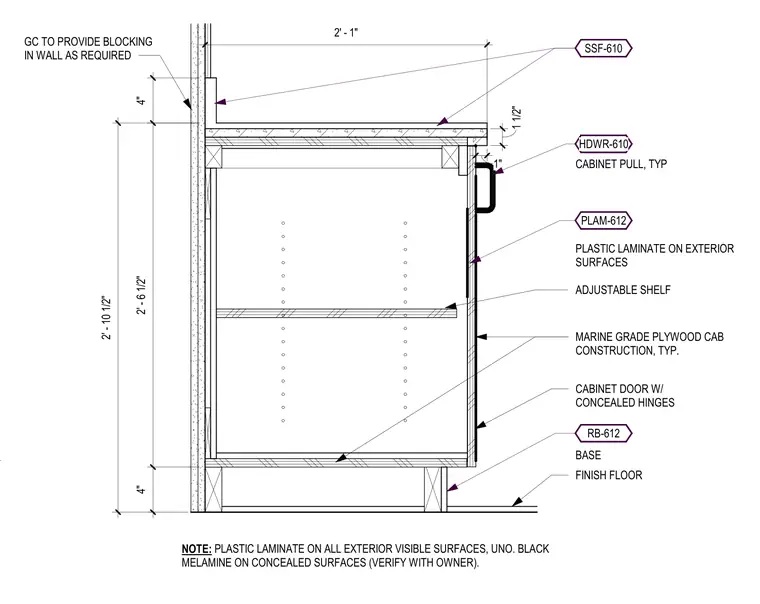

This beverage bar cabinet is constructed with marine grade plywood and finished with plastic laminate on all exterior surfaces. The assembly includes an adjustable shelf supported by a series of pre-drilled holes and a cabinet door equipped with concealed hinges and a standard cabinet pull. The unit sits on a base above the finish floor, with the general contractor responsible for providing necessary blocking within the adjacent wall. All concealed surfaces are finished with black melamine unless otherwise noted.
