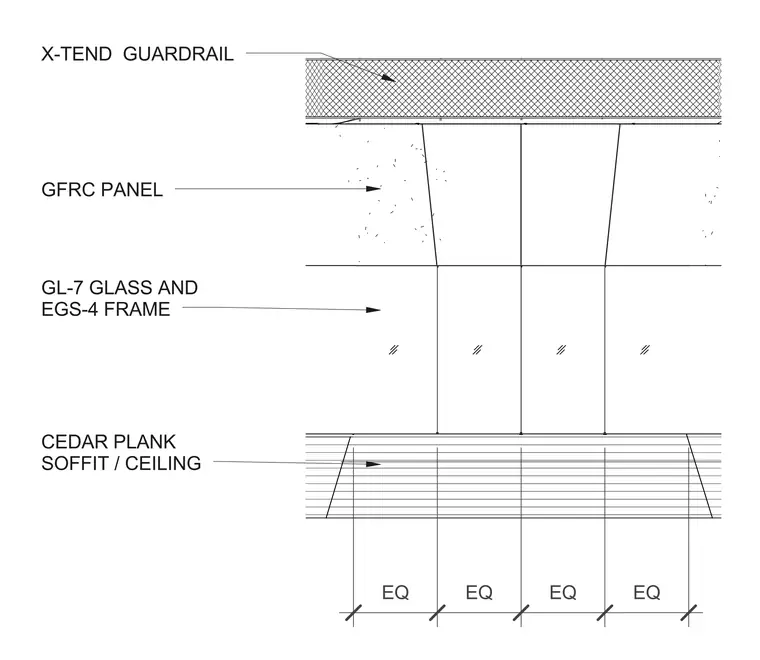

The assembly features an X-tend guardrail mounted above a glass facade system comprising GL-7 glass and EGS-4 framing. A glass fiber reinforced concrete panel sits adjacent to the glazing system. Below the facade elements, a cedar plank soffit and ceiling spans the assembly with equally spaced panel joints.
GFRC PANEL GL-7 GLASS AND EGS-4 FRAME CEDAR PLANK SOFFIT / CEILING X-TEND GUARDRAIL EQ EQ EQ EQ
