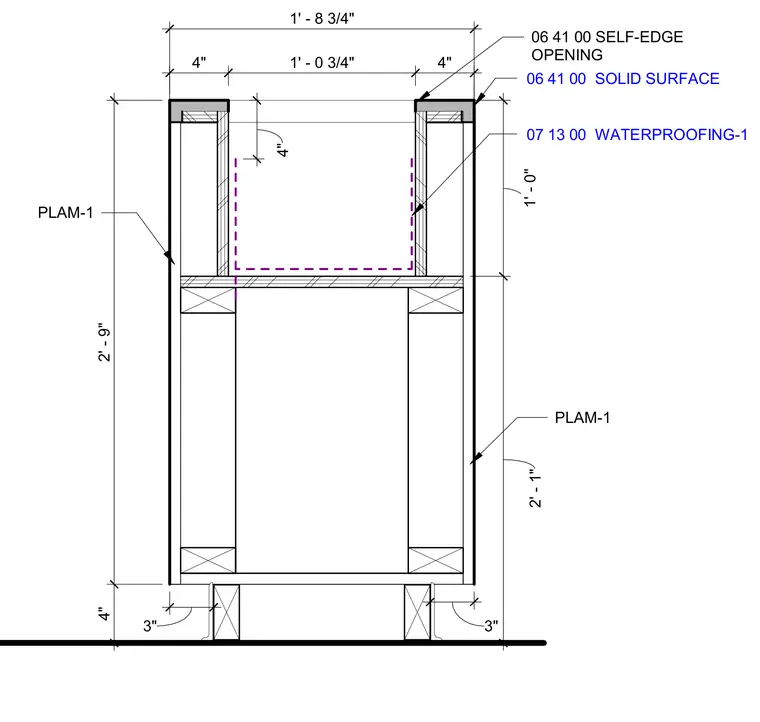

An interior built-in lounge planter assembly features a self-edge opening with solid surface material and plastic laminate exterior finish designated as PLAM-1. The internal planting trough is lined with waterproofing material. The overall unit stands on base supports with specified dimensional clearances.
06 41 00 SELF-EDGE OPENING 4" 1' - 0 3/4" 4" 3" 3" 1' - 8 3/4" 2' - 9" 4" PLAM-1 PLAM-1 2' - 1" 1' - 0" 06 41 00 SOLID SURFACE 4" 07 13 00 WATERPROOFING-1
