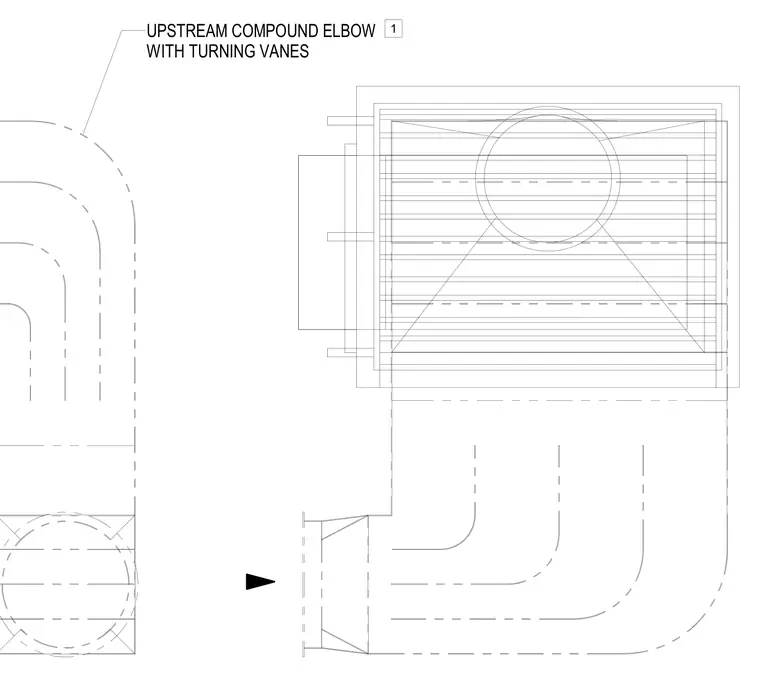

An upstream compound elbow duct assembly includes internal turning vanes to maintain smooth airflow through directional changes. The rectangular duct configuration features rounded corner transitions and a flanged connection interface.
