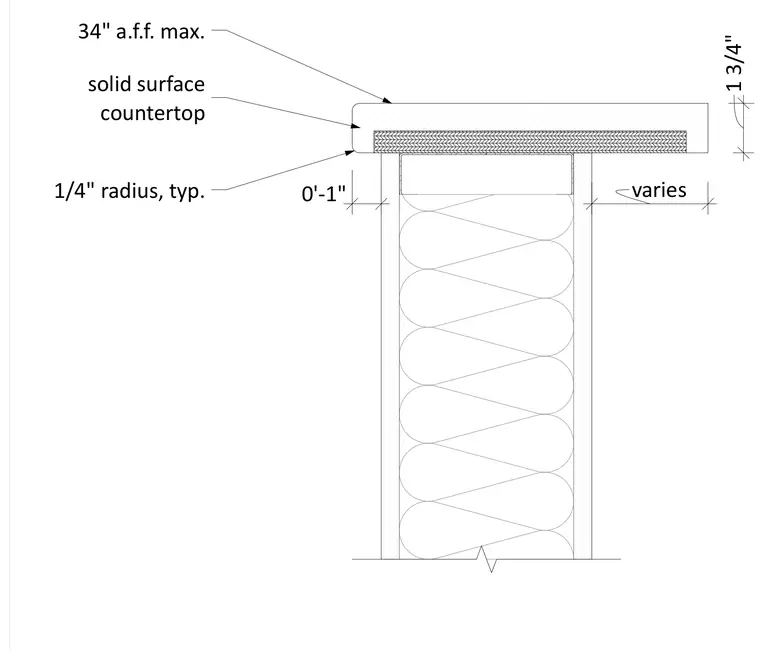

A one-and-three-quarter-inch-thick solid surface countertop sits atop an insulated interior partition wall framing assembly. The countertop features a typical one-quarter-inch radius edge detail and is positioned at a maximum height of 34 inches above the finished floor. The wall framing overhangs vary on each side by zero-point-one feet or as required by the installation.
varies 1 3/4" 0'-1" 1/4" radius, typ. solid surface countertop 34" a.f.f. max.
