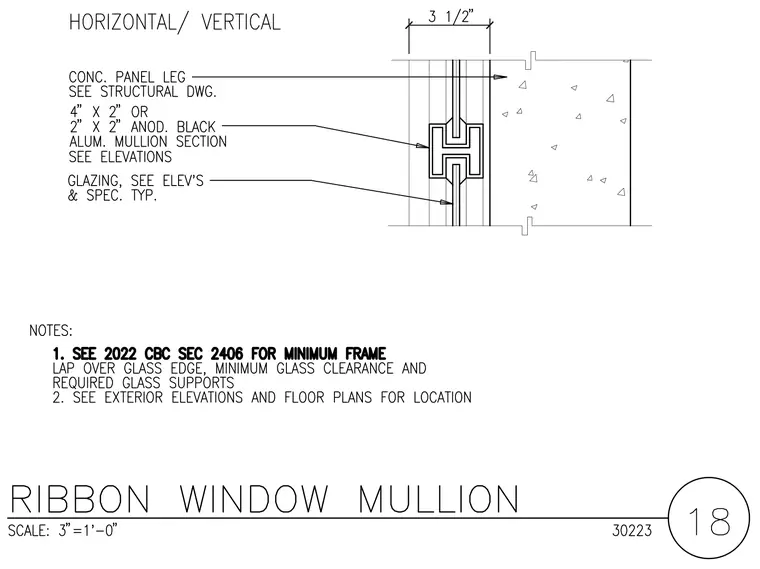

An anodized black aluminum mullion section, sized four inches by two inches or two inches by two inches, is positioned alongside a concrete panel leg sized per structural drawings. Glazing is integrated with typical clearances and edge laps per specifications and elevations. A dimension of three and one-half inches is maintained across the assembly. Notes mandate compliance with 2022 California Building Code Section 2406 for minimum frame lap, glass clearance, and glass supports.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
