The toilet paper dispenser must comply with the ICC/ANSI A117.1-2017 accessibility standard. The outlet of the dispenser is located within a range of twenty-four inches minimum and forty-two inches maximum from the rear wall, and at least eighteen inches minimum to the outlet from the finished floor. A one and one-half inch minimum clearance is required below the grab bar per section 609.3. The mirror reflective surface is positioned at a maximum of forty inches above the finished floor.

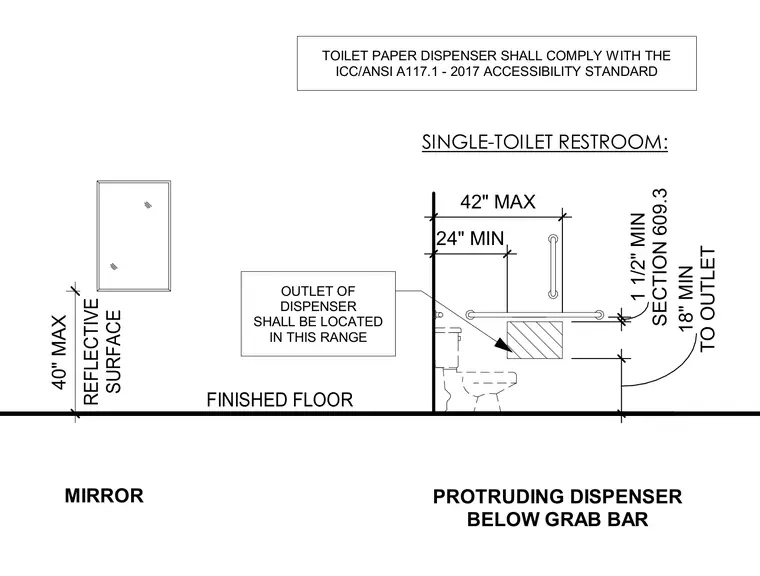

MIRROR TOILET PAPER DISPENSER SHALL COMPLY WITH THE ICC/ANSI A117.1 - 2017 ACCESSIBILITY STANDARD 40" MAX SINGLE-TOILET RESTROOM: 24" MIN 42" MAX TO OUTLET 18" MIN SECTION 609.3 1 1/2" MIN PROTRUDING DISPENSER BELOW GRAB BAR OUTLET OF DISPENSER SHALL BE LOCATED IN THIS RANGE FINISHED FLOOR REFLECTIVE SURFACE
