A pipe penetrates a rated partition as scheduled. A fire-rated firestopping assembly is provided around the penetration with an F-rating equal to or greater than the hourly rating of the partition per CBC 709.6.3 and 714 for each utility or group of utility penetrations.

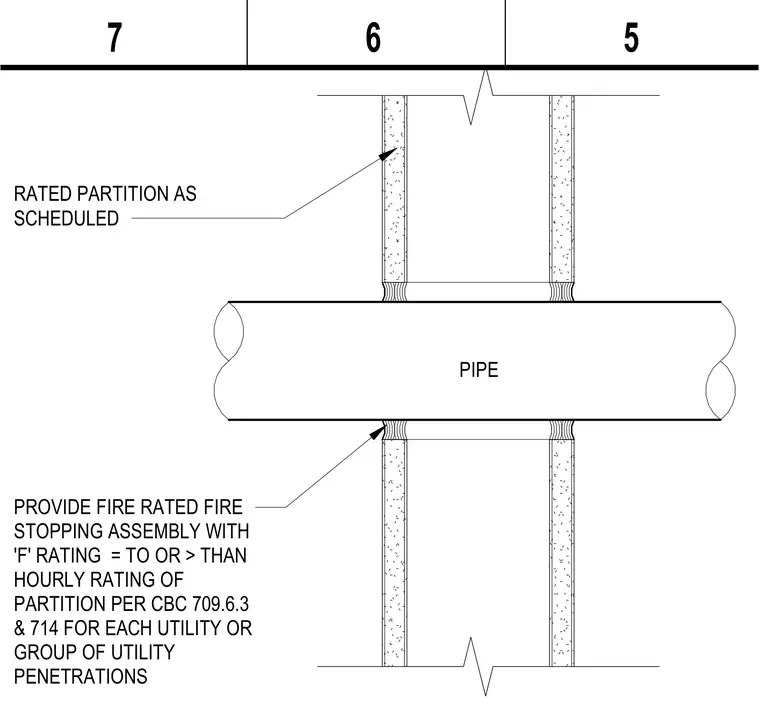

RATED PARTITION AS SCHEDULED PROVIDE FIRE RATED FIRE STOPPING ASSEMBLY WITH 'F' RATING = TO OR > THAN HOURLY RATING OF PARTITION PER CBC 709.6.3 & 714 FOR EACH UTILITY OR GROUP OF UTILITY PENETRATIONS PIPE 5 6 7
