Architectural · A-8W5CS

Gypsum Board Framed Reverse Soffit Detail

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

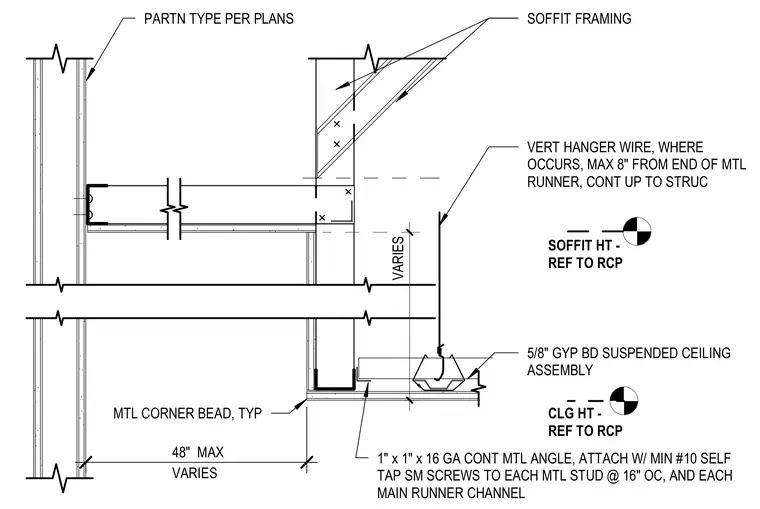

A metal stud partition supports a framed reverse soffit finished with five-eighths inch gypsum board and a typical metal corner bead. Vertical hanger wires spaced a maximum of eight inches from the end of the metal runner secure the suspended ceiling assembly to the structural soffit. A continuous one-inch by one-inch by sixteen-gauge metal angle attaches with minimum number ten self-tapping sheet metal screws to each metal stud at sixteen inches on center and to each main runner channel.
