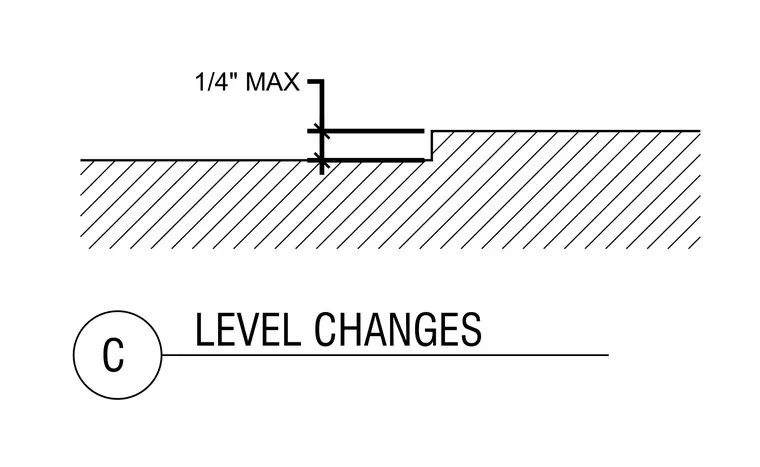

A vertical level change in the floor slab is limited to a maximum dimension of one quarter inch. The transition is formed directly within the concrete substrate without added nosing materials.
