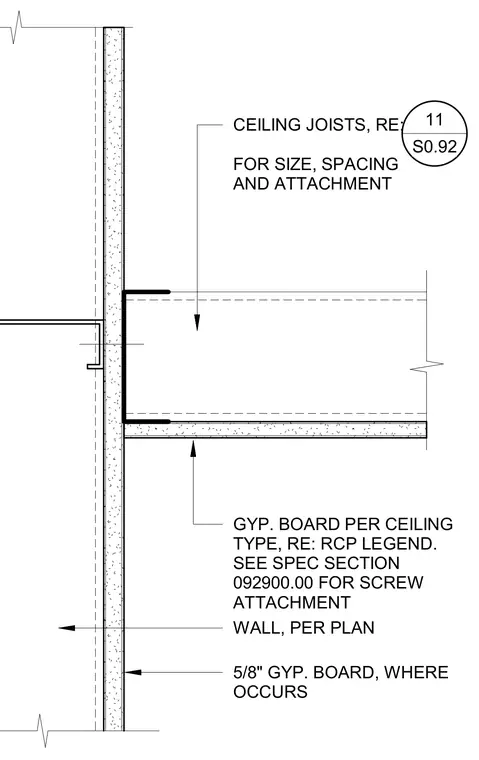

Five-eighths inch gypsum board is attached to ceiling joists framed per structural plans with sizing and spacing per reference sheet S0.92. The ceiling finish meets a wall assembly specified per plan and includes additional gypsum board where required. Screw attachment complies with specification section 092900.00.
GYP. BOARD PER CEILING TYPE, RE: RCP LEGEND. SEE SPEC SECTION 092900.00 FOR SCREW ATTACHMENT WALL, PER PLAN CEILING JOISTS, RE: FOR SIZE, SPACING AND ATTACHMENT 5/8" GYP. BOARD, WHERE OCCURS 11 S0.92
