Rammed earth panels connect back to a structural concrete wall using a continuous channel iron member. Mounting brackets with through holes secure the panels with one-eighth-inch hex head Tapcon anchors. An eighth-inch joint is maintained between the rammed earth panels.

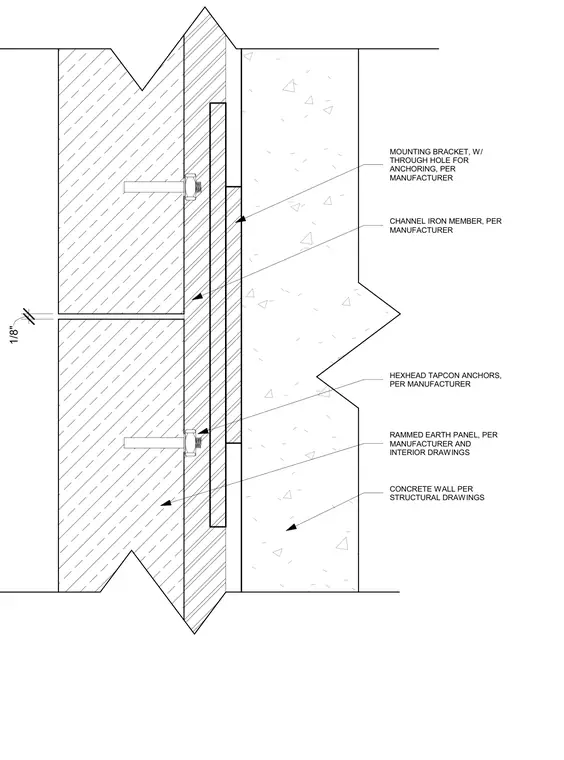

MOUNTING BRACKET, W/ THROUGH HOLE FOR ANCHORING, PER MANUFACTURER CHANNEL IRON MEMBER, PER MANUFACTURER RAMMED EARTH PANEL, PER MANUFACTURER AND INTERIOR DRAWINGS CONCRETE WALL PER STRUCTURAL DRAWINGS 1/8" HEXHEAD TAPCON ANCHORS, PER MANUFACTURER
