Concrete Filled Steel Stair Pan Tread and Riser Detail

Elements

About this detail

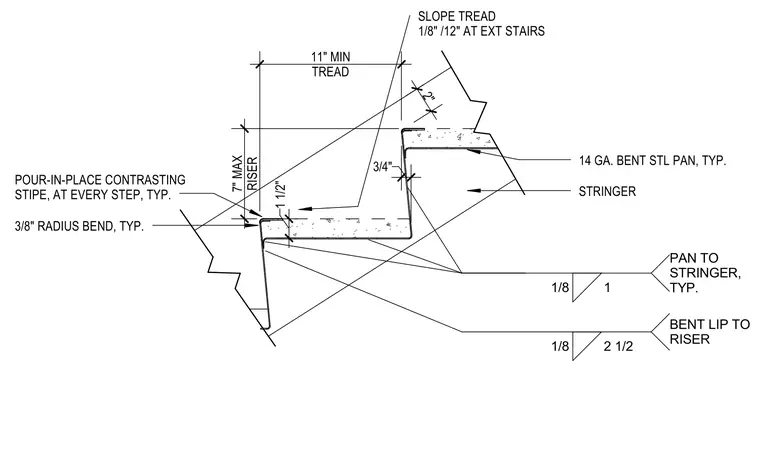

A concrete-filled metal pan stair assembly features a fourteen-gauge bent steel pan supported by a stringer. The riser has a maximum height of seven inches and the tread has a minimum depth of eleven inches with a three-eighths-inch radius bend. A pour-in-place contrasting stripe is provided at every step. The stair pans are welded to the stringers with one-eighth-inch fillet welds spaced at one inch typically, with a bent lip to riser connection welded at two and one-half inches. Exterior stairs include a tread slope of one-eighth inch per twelve inches.
