Architectural · A-8VGWT

Ceiling - Recessed Light Fixture

Materials

Elements

About this detail

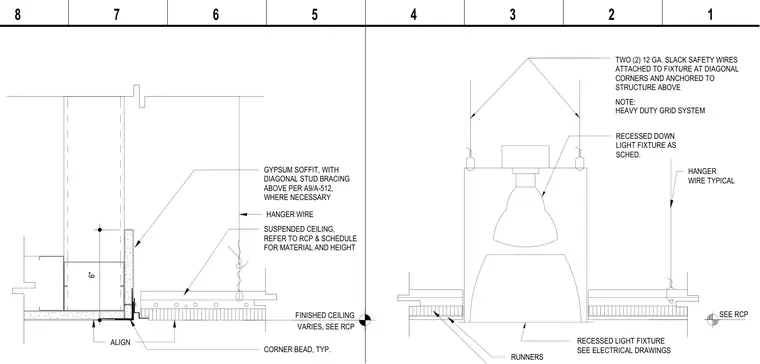

A recessed down light fixture is integrated into a suspended ceiling grid and supported by typical hanger wires. Two twelve gauge slack safety wires are attached to the fixture at diagonal corners and anchored independently to the structure above. A gypsum soffit with diagonal stud bracing above is tied back to the framing where necessary. Grid runners support the ceiling panels, and a corner bead finishes the gypsum soffit junction.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
