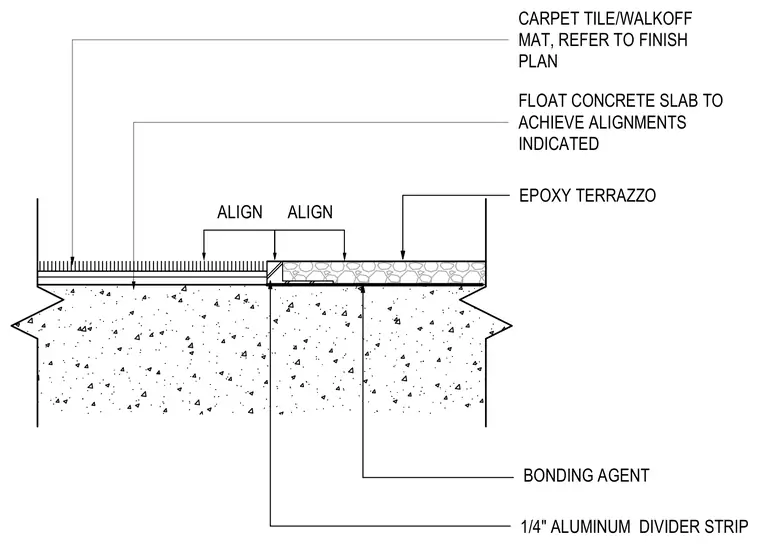

Transition between carpet tile or walkoff mat and epoxy terrazzo flooring over a concrete slab. The concrete slab is floated to achieve the required surface alignments for both flooring materials. A one-quarter-inch aluminum divider strip separates the two finishes and maintains alignment at the joint. A bonding agent is applied beneath the epoxy terrazzo. The carpet tile and walkoff mat are installed as indicated on the finish plan.
ALIGN ALIGN EPOXY TERRAZZO FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED BONDING AGENT CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN 1/4" ALUMINUM DIVIDER STRIP
