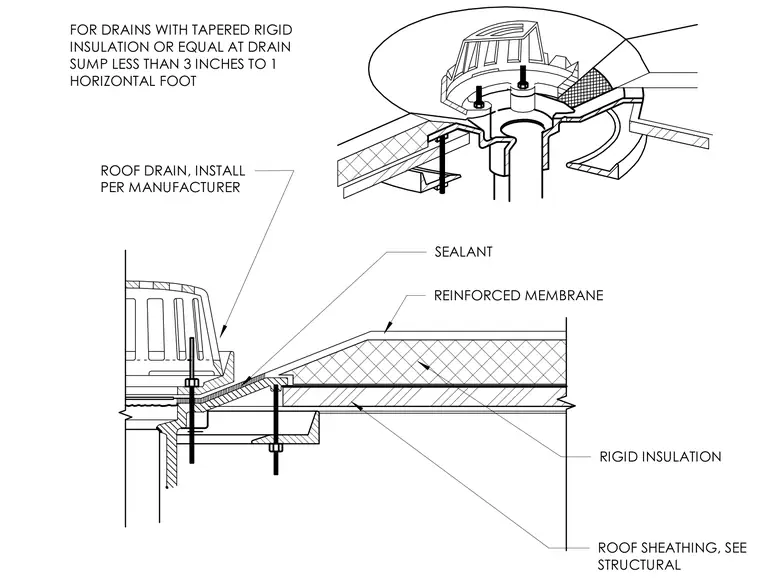

A roof drain is installed through roof sheathing with tapered rigid insulation or equal at the drain sump, maintaining a slope of less than three inches to one horizontal foot. The drain unit is installed per the manufacturer recommendations with continuous sealant at the flange. A reinforced membrane waterproofing layer extends over the rigid insulation and terminates into the drain flashing. Fasteners secure the assembly through the structural roof framing.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION
