Electrical · A-8V89P

Existing Panel

About this detail

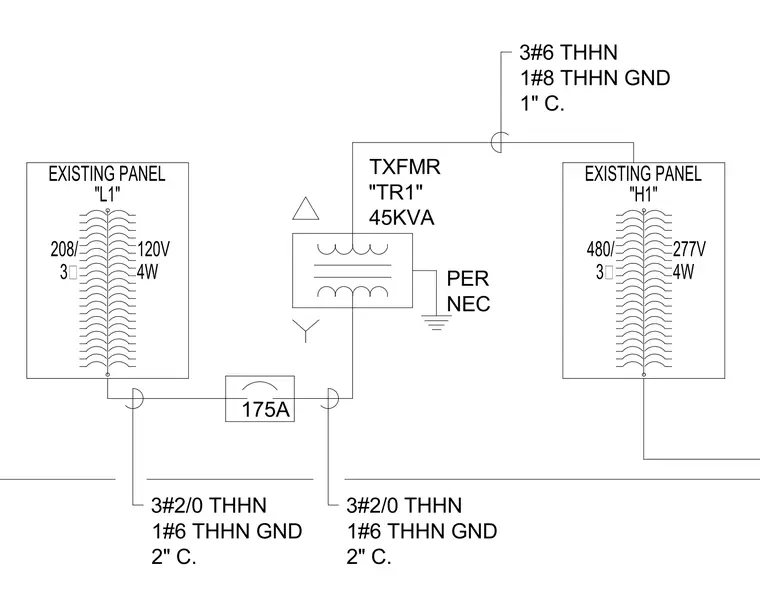

An electrical distribution single line diagram shows a forty-five KVA transformer designated as TR1 connected to existing panels H1 and L1. Panel H1 operates at 480/277 volt, three phase, four wire service and connects via three number 6 THHN conductors, one number 8 THHN ground conductor, and a one inch conduit. Panel L1 operates at 208/120 volt, three phase, four wire service and connects through a 175 amp protection device with three number 2/0 THHN conductors, one number 6 THHN ground conductor, and a two inch conduit. Grounding is provided per the National Electrical Code.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
