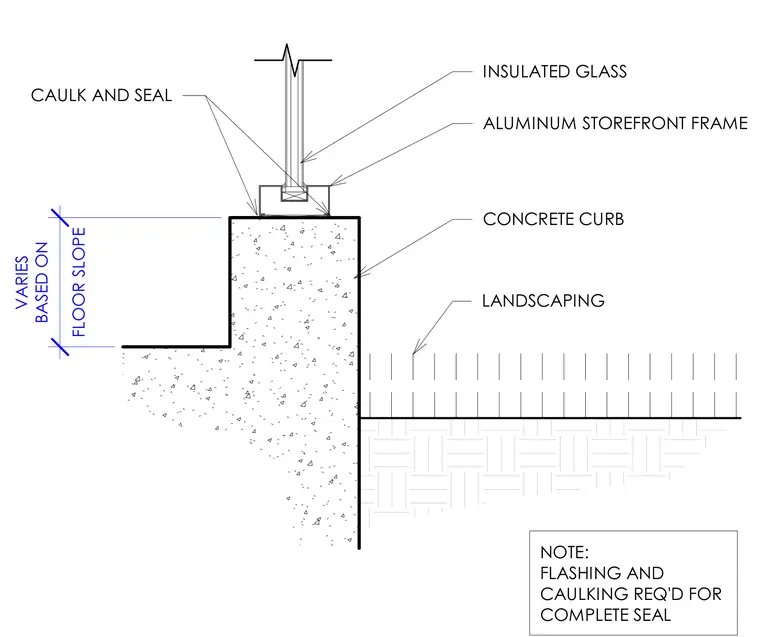

An aluminum storefront frame rests atop a concrete curb, supporting an insulated glass unit. Continuous caulk and seal applications seal the frame perimeter at the concrete interface. Adjacent exterior landscaping abuts the lower portion of the concrete curb. Flashing and caulking are required for a complete weather seal.
INSULATED GLASS ALUMINUM STOREFRONT FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL CONCRETE CURB FLOOR SLOPE VARIES BASED ON
