A steel post is set into a poured concrete base measuring one foot wide by three feet deep minimum. The top of the pipe is capped, and the sign panel is secured using one-quarter inch diameter by one and one-half inch bolts, lockwashers, and waterproof nuts. The assembly provides a minimum clearance of six feet ten inches above grade.

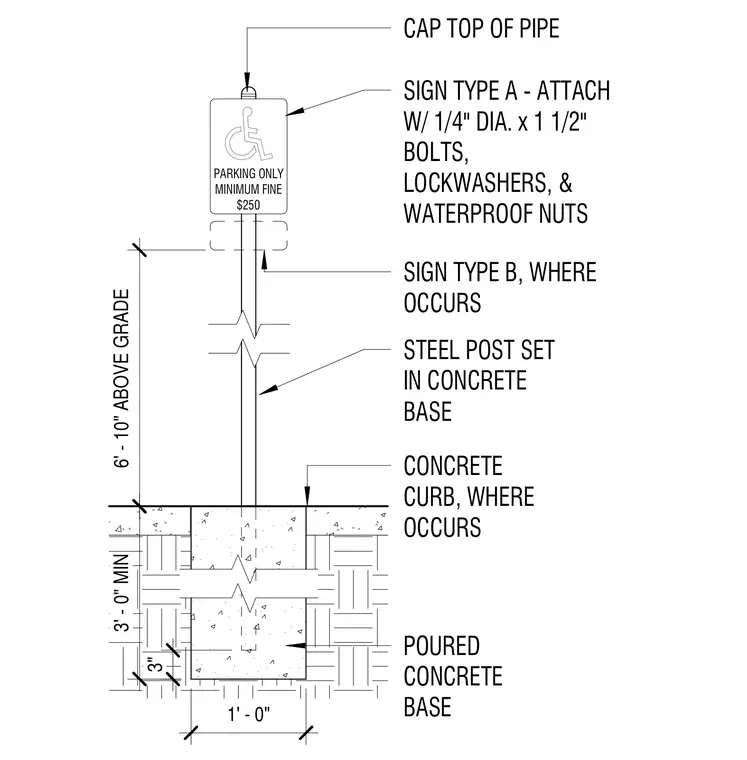

1' - 0" STEEL POST SET IN CONCRETE BASE POURED CONCRETE BASE SIGN TYPE A - ATTACH W/ 1/4" DIA. x 1 1/2" BOLTS, LOCKWASHERS, & WATERPROOF NUTS CONCRETE CURB, WHERE OCCURS 3" PARKING ONLY MINIMUM FINE $250 SIGN TYPE B, WHERE OCCURS CAP TOP OF PIPE 3' - 0" MIN 6' - 10" ABOVE GRADE
