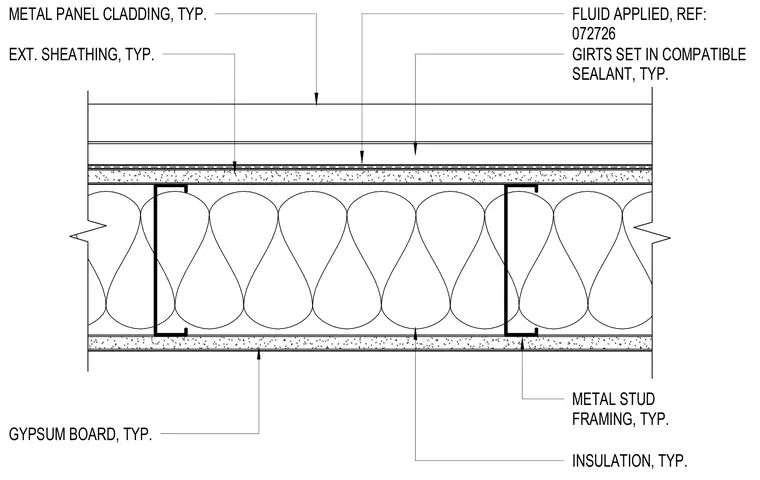

Metal panel cladding is mounted on girts set in compatible sealant over exterior sheathing and a fluid-applied waterproofing membrane referencing section 072726. The backup wall consists of cold-formed metal stud framing with batt insulation filling the stud cavity. Gypsum board is installed on the interior face of the metal stud framing.
GIRTS SET IN COMPATIBLE SEALANT, TYP. METAL STUD FRAMING, TYP. EXT. SHEATHING, TYP. METAL PANEL CLADDING, TYP. GYPSUM BOARD, TYP. FLUID APPLIED, REF: 072726 INSULATION, TYP.
