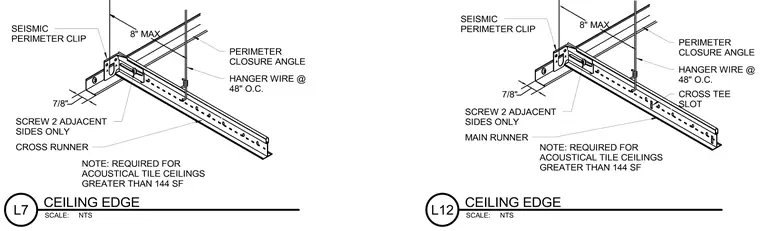

The suspended ceiling system terminates at a perimeter closure angle secured with hanger wires spaced at forty-eight inches on center. A seismic perimeter clip is attached to the wall angle and ceiling runner. Screws are fastened to two adjacent sides only. The main runner and cross runner integrate with cross tee slots, and a note indicates this configuration is required for acoustical tile ceilings greater than one hundred forty-four square feet.
