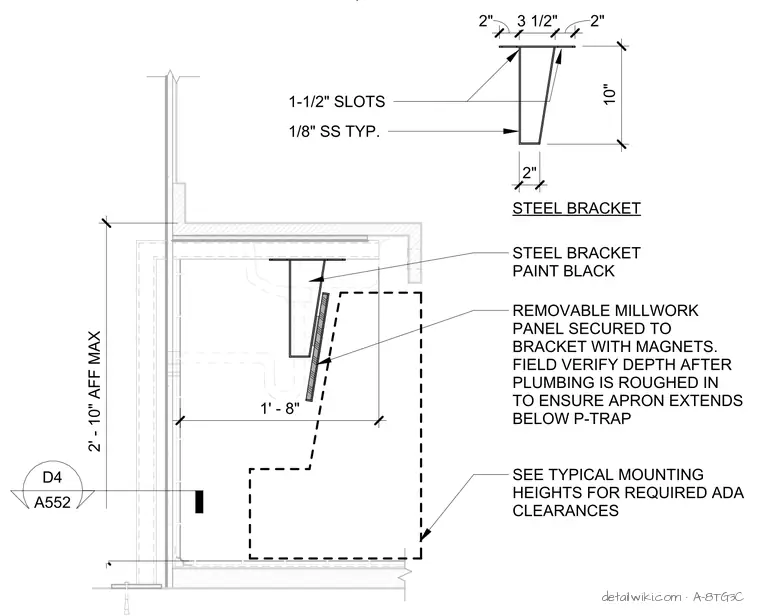

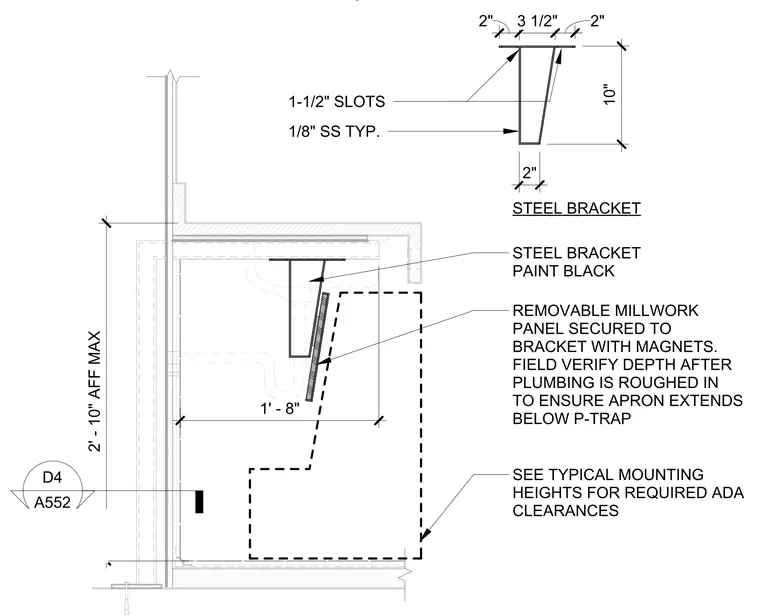

This assembly consists of a steel bracket, fabricated from one-eighth inch stainless steel, which supports a removable millwork apron panel. The bracket measures ten inches in height with a three and one-half inch top flange and a two-inch base, featuring one and one-half inch slots for mounting. The millwork panel is secured to the bracket using magnets, allowing for access to the plumbing rough-in. The apron is positioned to extend below the P-trap, with the final depth to be field-verified after plumbing installation. The assembly is designed to maintain ADA-compliant clearance heights, with a maximum height of two feet ten inches above finished floor.
