Stair Handrail and Guardrail Detail with Integrated LED Lighting

Materials

Steel Metal (misc.)

Elements

Stairs Railings / Guards Connections / Plates

Connections

HSS Connection

About this detail

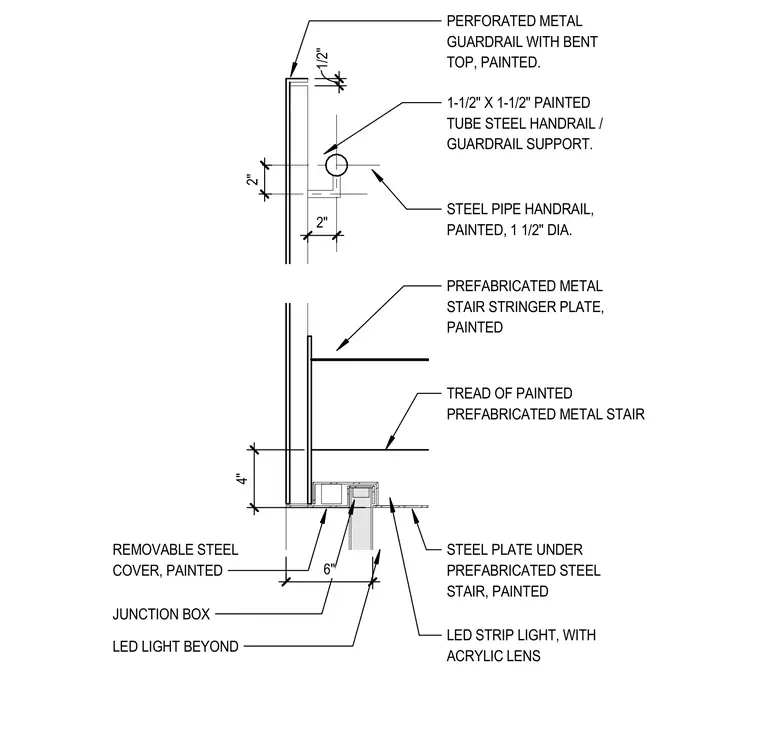

This stair handrail and guardrail assembly features a 1 1/2-inch diameter painted steel pipe handrail mounted on a 1 1/2-inch by 1 1/2-inch painted tube steel support. The guardrail consists of a painted perforated metal panel with a bent top. The prefabricated metal stair stringer plate connects to the stair treads, positioned above an integrated junction box with a removable painted steel cover. An LED strip light with an acrylic lens is recessed beneath the stair assembly, illuminating the tread below.
