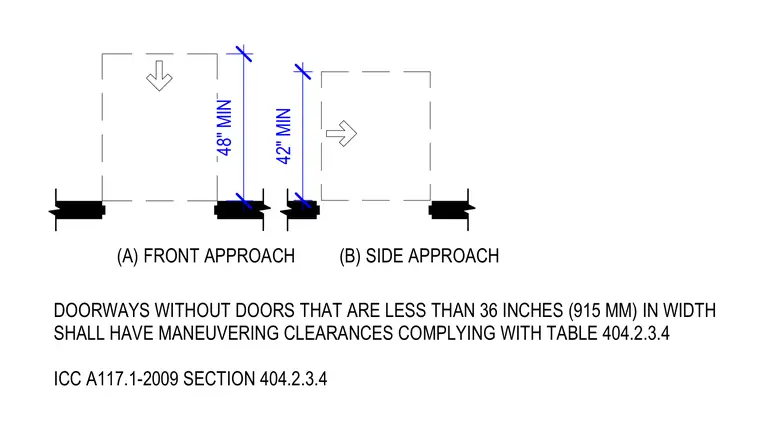

Doorways without doors that measure less than 36 inches in width require specific maneuvering clearances per ICC A117.1-2009 Section 404.2.3.4. A front approach requires a minimum depth of 48 inches. A side approach requires a minimum width of 42 inches.
(B) SIDE APPROACH (A) FRONT APPROACH 48" MIN 42" MIN DOORWAYS WITHOUT DOORS THAT ARE LESS THAN 36 INCHES (915 MM) IN WIDTH SHALL HAVE MANEUVERING CLEARANCES COMPLYING WITH TABLE 404.2.3.4 ICC A117.1-2009 SECTION 404.2.3.4
