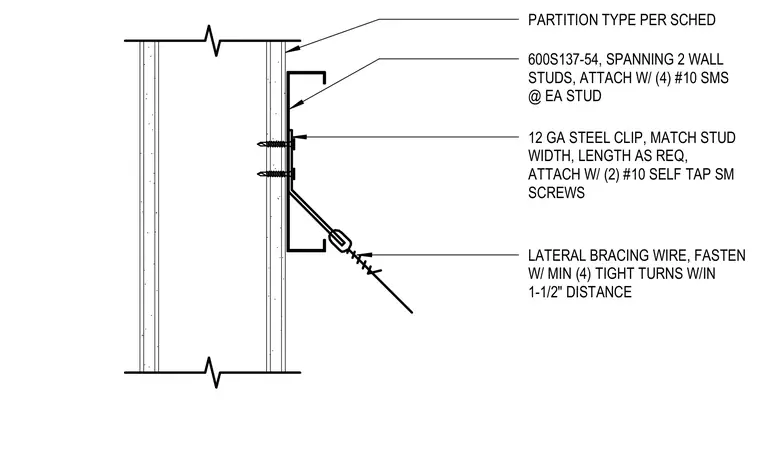

A 12-gauge steel clip matching the stud width is attached to two wall studs using four number 10 sheet metal screws at each stud. A lateral bracing wire connects to the clip and is fastened with a minimum of four tight turns within a one-and-a-half-inch distance. The assembly provides upper lateral support for a partition wall specified per schedule.
PARTITION TYPE PER SCHED 600S137-54, SPANNING 2 WALL STUDS, ATTACH W/ (4) #10 SMS @ EA STUD 12 GA STEEL CLIP, MATCH STUD WIDTH, LENGTH AS REQ, ATTACH W/ (2) #10 SELF TAP SM SCREWS LATERAL BRACING WIRE, FASTEN W/ MIN (4) TIGHT TURNS W/IN 1-1/2" DISTANCE
