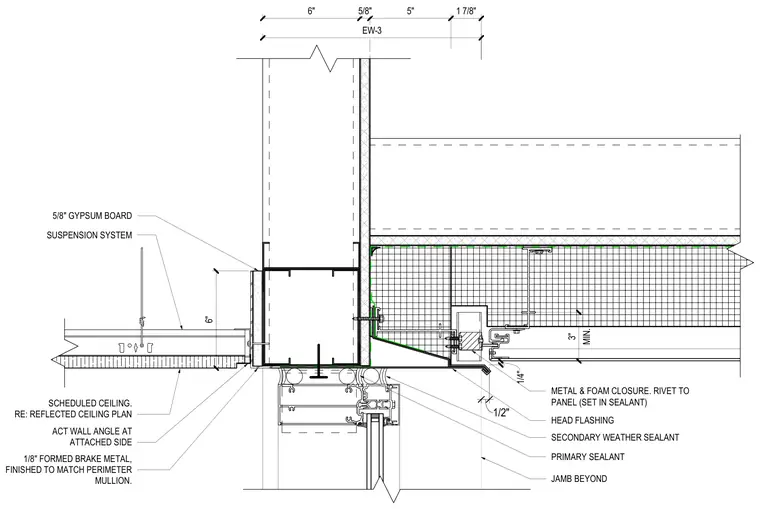

A transition between a curtain wall head and an exterior wall panel with a formed brake metal flashing. The assembly includes primary and secondary weather sealants at the head condition, along with a metal and foam closure riveted to the panel in a sealant bed. An acoustical ceiling tile suspension system with a 5/8-inch gypsum board attaches to the perimeter wall angle, framed against the mullion assembly.
6" 5/8" 5" 1 7/8" 1/4" HEAD FLASHING SECONDARY WEATHER SEALANT PRIMARY SEALANT JAMB BEYOND EW-3 1/2" SCHEDULED CEILING. RE: REFLECTED CEILING PLAN 1/8" FORMED BRAKE METAL, FINISHED TO MATCH PERIMETER MULLION. 6" MIN. 3" METAL & FOAM CLOSURE. RIVET TO PANEL (SET IN SEALANT) 5/8" GYPSUM BOARD SUSPENSION SYSTEM ACT WALL ANGLE AT ATTACHED SIDE
