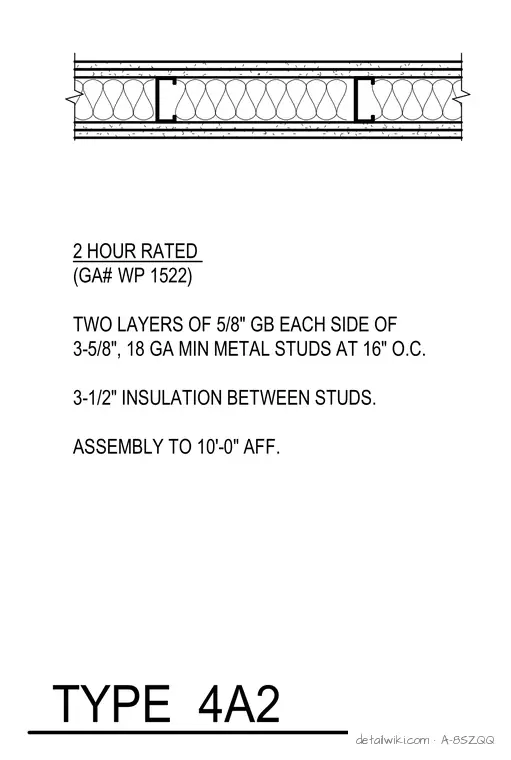

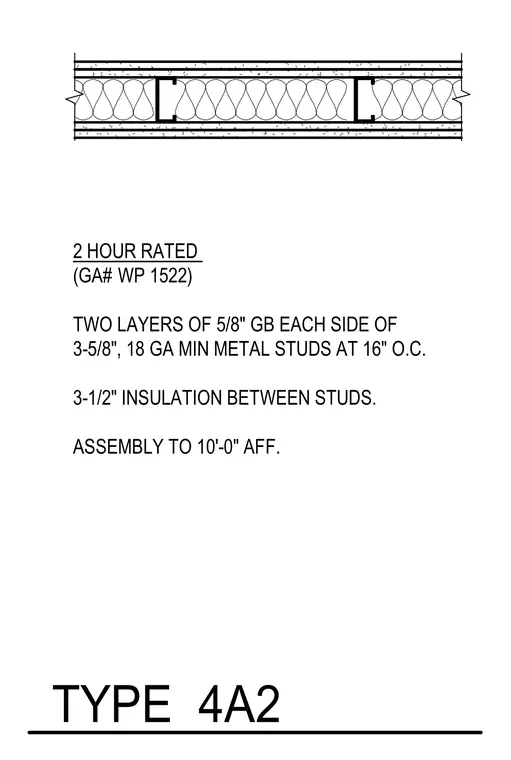

This two-hour fire-rated partition assembly features two layers of five-eighths inch gypsum board on each side of three and five-eighths inch, eighteen gauge minimum metal studs spaced at sixteen inches on center. Three and one-half inch insulation is installed between the studs. The assembly extends to ten feet above finished floor.
2 HOUR RATED (GA# WP 1522) TWO LAYERS OF 5/8" GB EACH SIDE OF 3-5/8", 18 GA MIN METAL STUDS AT 16" O.C. 3-1/2" INSULATION BETWEEN STUDS. ASSEMBLY TO 10'-0" AFF. TYPE 4A2
