Architectural · A-8SWB8

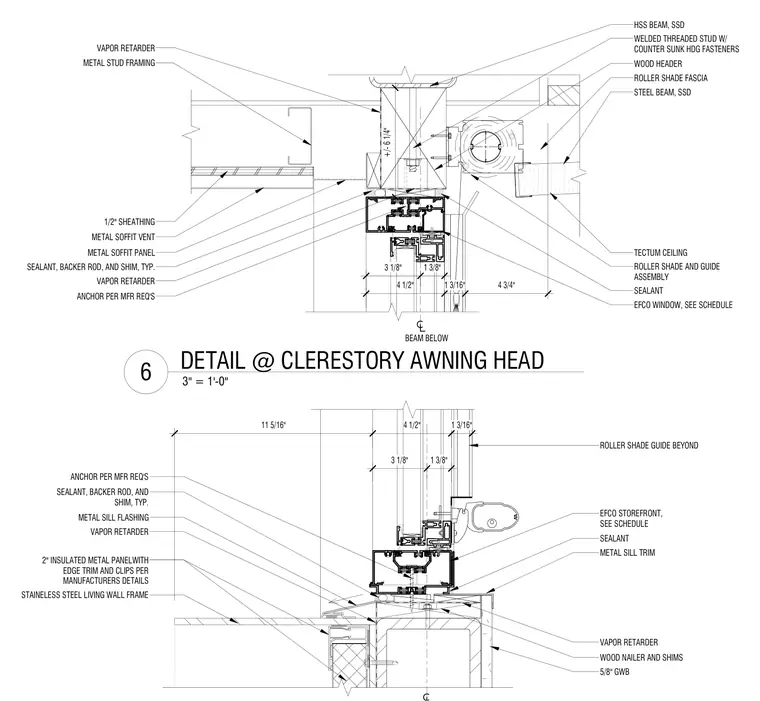

Detail at Clerestory Awning Head

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Storefronts Facades / Cladding Canopies Ceilings Waterproofing / Flashing Anchors / Embeds Roof / Floor Openings

Connections

HSS Connection Welded Connection

About this detail

Head and sill conditions of a clerestory awning integrated with structural steel framing, hollow structural section beams, and cold-formed steel stud framing. The assembly features an Efco window and storefront system, a roller shade fascia and guide assembly, and a Tectum ceiling. Weatherproofing is detailed with continuous vapor retarders, sealant with backer rods and shims, metal sill flashing, and insulated metal panels with edge trim and clips. Additional elements include a stainless steel living wall frame, wood headers, wood nailers, and gypsum wallboard, anchored per manufacturer requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
