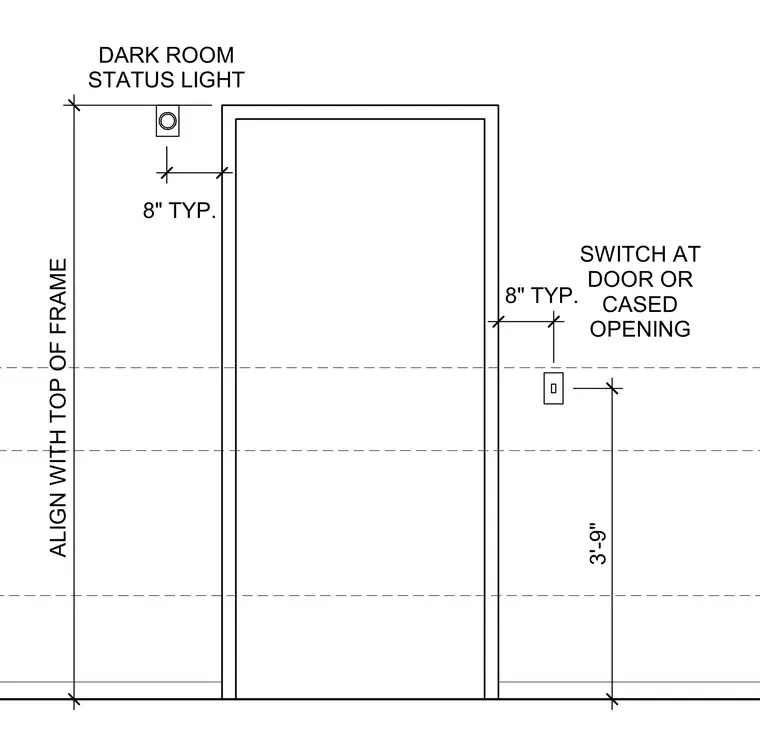

A dark room status light is mounted at an eight-inch typical offset from the top of the door frame, aligned vertically with the top of the frame. A control switch is positioned at a door or cased opening with an eight-inch typical horizontal offset from the frame edge. The centerline of the switch is set at three feet nine inches above the finished floor.
DARK ROOM STATUS LIGHT SWITCH AT DOOR OR CASED OPENING 7 ALIGN WITH TOP OF FRAME 8" TYP. 8" TYP. 3'-9"
