Structural · A-8S7Q5

Tower Steel Column Cap Plate and Beam Connection Plan

Materials

Steel

Elements

Beams Connections / Plates

Connections

Expansion / Slip Connection

About this detail

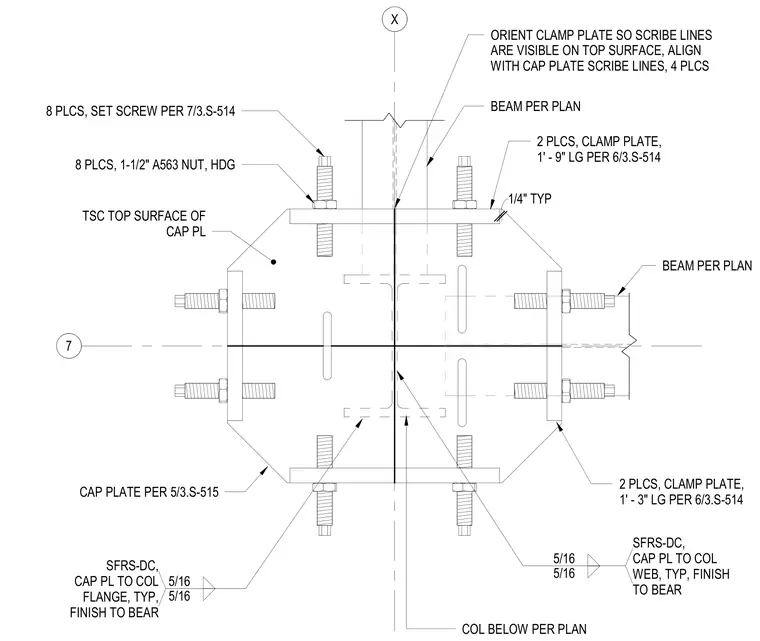

A steel column cap plate assembly incorporates radiating beams sized per plan, secured by four sets of clamp plates in varying lengths of one foot nine inches and one foot three inches. Eight hot-dipped galvanized one-and-a-half-inch A563 nuts and set screws secure the clamp plate hardware around the perimeter. The cap plate connects to the column flange and web using five-sixteenth-inch welds finished to bear. Scribe lines on the top surface of the cap plate align with matching marks on the clamp plates during installation.
