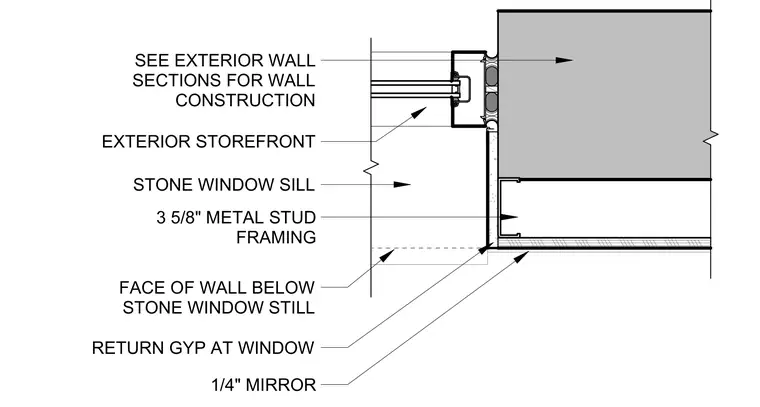

An exterior storefront system abuts a 3-5/8 inch cold-formed metal stud framing furred wall with a stone window sill. Gypsum board returns at the window jamb adjacent to a 1/4 inch mirror mounted on the interior wall face. Wall construction transitions to exterior wall sections per adjacent details.
SEE EXTERIOR WALL SECTIONS FOR WALL CONSTRUCTION EXTERIOR STOREFRONT 3 5/8" METAL STUD FRAMING RETURN GYP AT WINDOW FACE OF WALL BELOW STONE WINDOW STILL STONE WINDOW SILL 1/4" MIRROR
