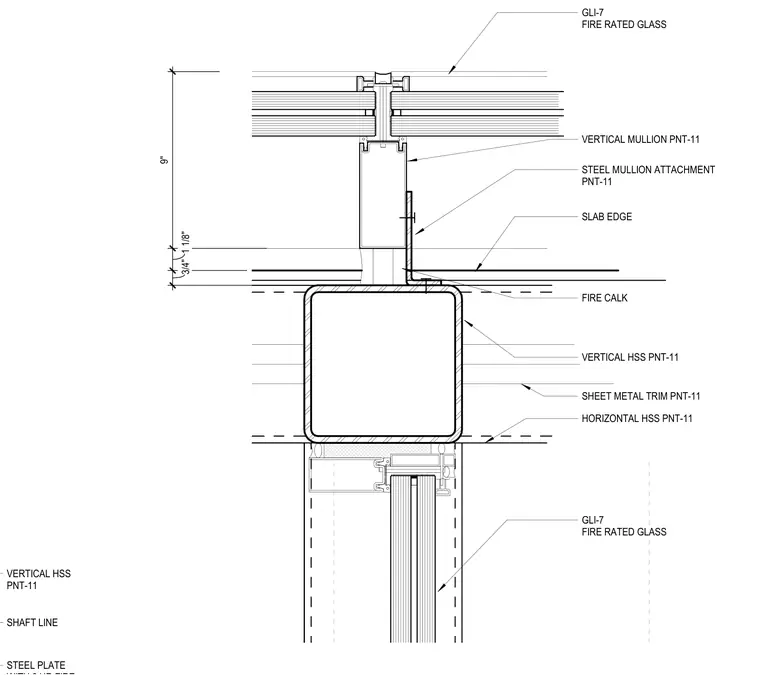

Fire-rated glass assembly meeting a vertical hollow structural section steel column with a steel mullion attachment and slab edge sheet metal trim. A vertical mullion connects to the glass, secured by a steel mullion attachment plate. Fire caulking seals the junction between the structural column and adjacent construction. Horizontal hollow structural section framing and sheet metal trim integrate into the surrounding partition.
GLI-7 FIRE RATED GLASS VERTICAL MULLION PNT-11 STEEL MULLION ATTACHMENT PNT-11 VERTICAL HSS PNT-11 HORIZONTAL HSS PNT-11 SLAB EDGE SHEET METAL TRIM PNT-11 GLI-7 FIRE RATED GLASS FIRE CALK 3 / 4 " 1 1 / 8 " 9 " VERTICAL HSS PNT-11 SHAFT LINE STEEL PLATE
