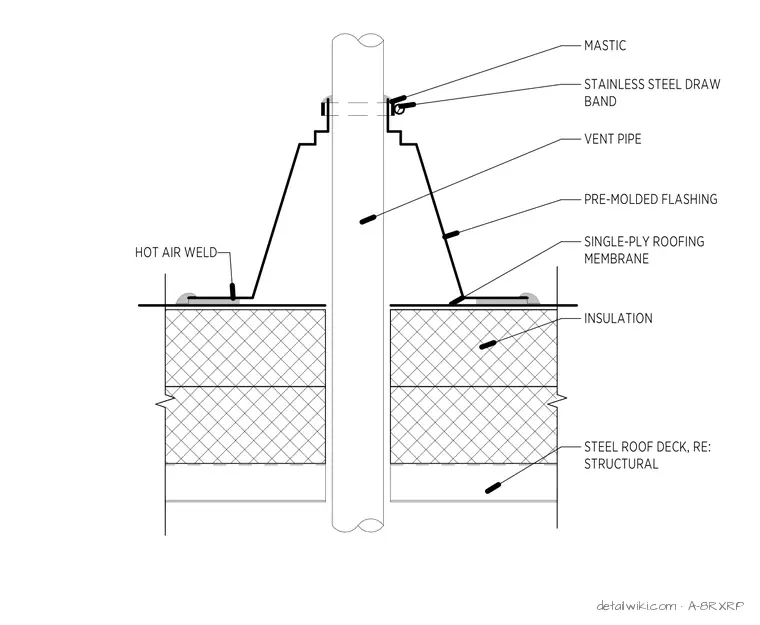

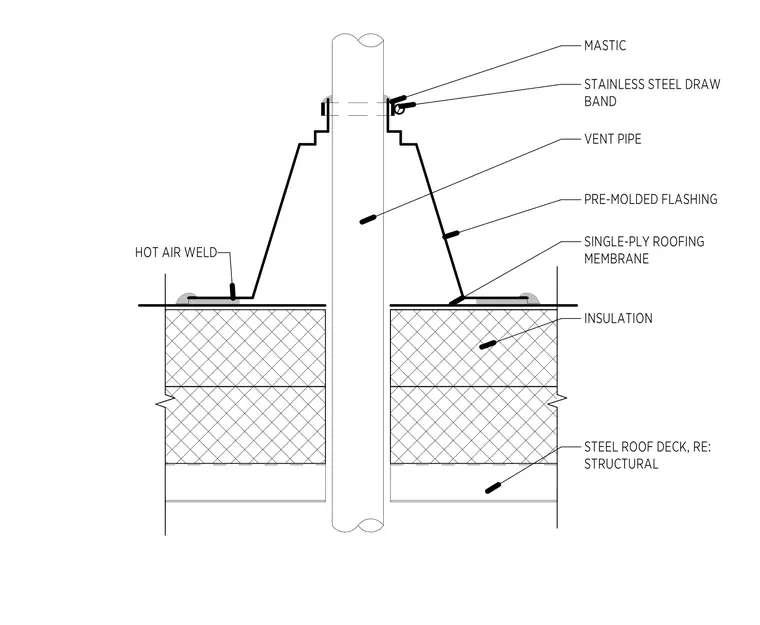

This assembly seals a vent pipe penetrating a roof system consisting of a steel roof deck and insulation. A pre-molded flashing boot is hot-air welded to the single-ply roofing membrane at its base. The top of the flashing boot is secured to the vent pipe using a stainless steel draw band, with mastic applied at the interface to ensure a watertight seal.
