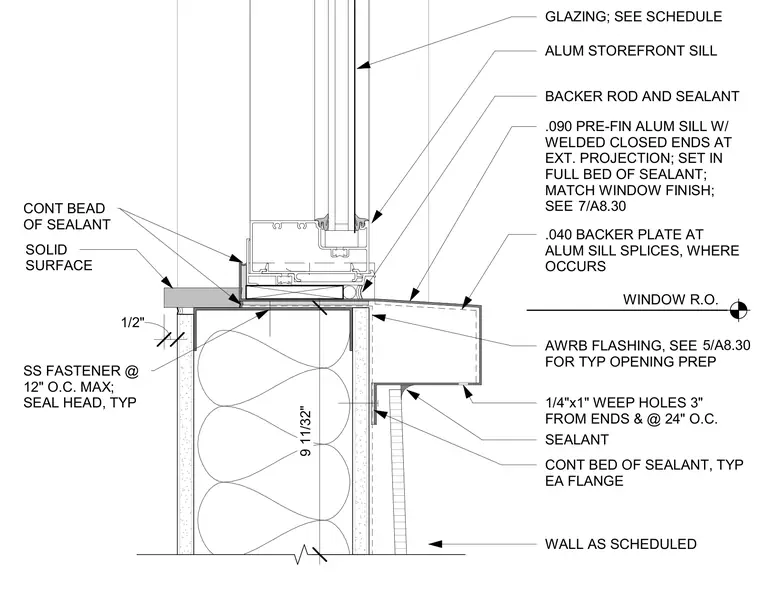

An aluminum storefront sill is set in a full bed of sealant over a window rough opening with a matching finish and welded closed ends at the exterior projection. A zero-point-zero-nine-zero-inch prefinished aluminum sill features a zero-point-zero-four-inch backer plate at sill splices and one-quarter-inch by one-inch weep holes located three inches from the ends and spaced at twenty-four inches on center. Air-water-resistive barrier flashing runs along the rough opening preparation. A continuous bead of sealant seals the joint at the interior solid surface stool which is secured with stainless steel fasteners at a maximum of twelve inches on center. The assembly rests on a framed wall as scheduled with continuous beds of sealant at each flange.
GLAZING; SEE SCHEDULE ALUM STOREFRONT SILL BACKER ROD AND SEALANT WINDOW R.O. WALL AS SCHEDULED 9 11/32" CONT BEAD OF SEALANT SS FASTENER @ 12" O.C. MAX; SEAL HEAD, TYP SOLID SURFACE 1/2" 7/A8.30 .090 PRE-FIN ALUM SILL W/ WELDED CLOSED ENDS AT EXT. PROJECTION; SET IN FULL BED OF SEALANT; MATCH WINDOW FINISH; SEE 1/4"x1" WEEP HOLES 3" FROM ENDS & @ 24" O.C. AWRB FLASHING, SEE FOR TYP OPENING PREP .040 BACKER PLATE AT ALUM SILL SPLICES, WHERE OCCURS SEALANT CONT BED OF SEALANT, TYP EA FLANGE 5/A8.30
