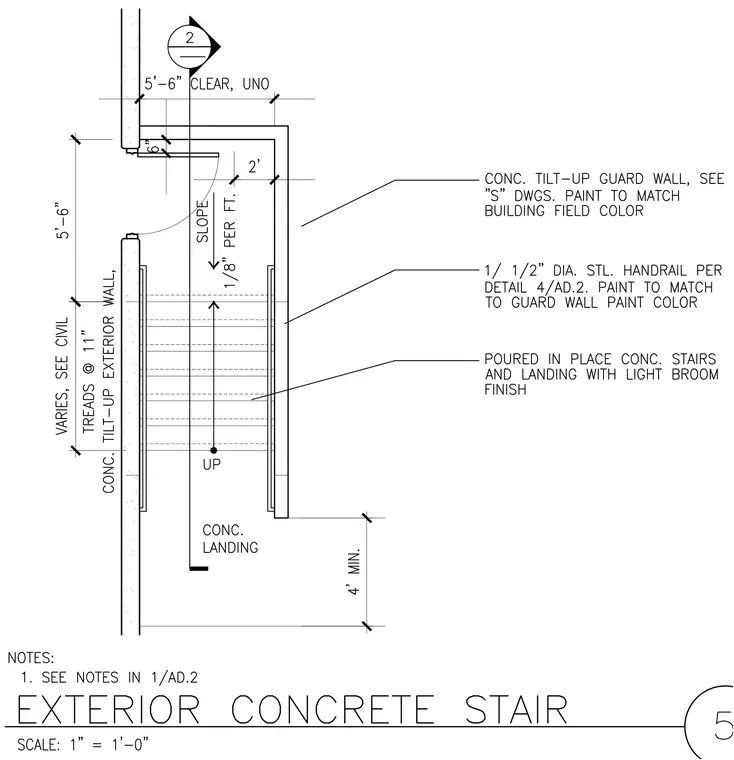

Exterior concrete stair featuring poured-in-place concrete stairs and landing with a light broom finish, framed by a concrete tilt-up exterior wall and a concrete tilt-up guard wall. The stair assembly includes an 1 1/2" diameter steel handrail painted to match the guard wall paint color. Dimensions indicate a 5'-6" clear vertical opening unless otherwise noted, treads at 11", and a slope of 1/8" per foot on the landing.
