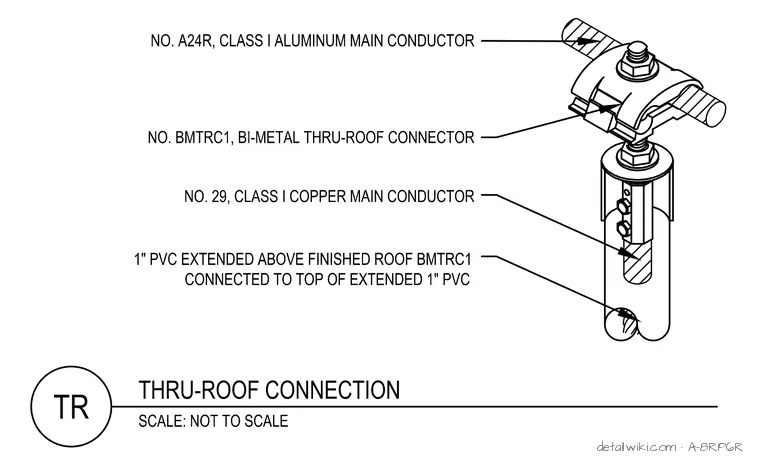

A Class I aluminum main conductor (No. A24R) secures to the top of a bi-metal thru-roof connector (No. BMTRC1). A Class I copper main conductor (No. 29) connects to the bottom of the bi-metal connector. The assembly passes through a one-inch PVC sleeve extended above the finished roof.
