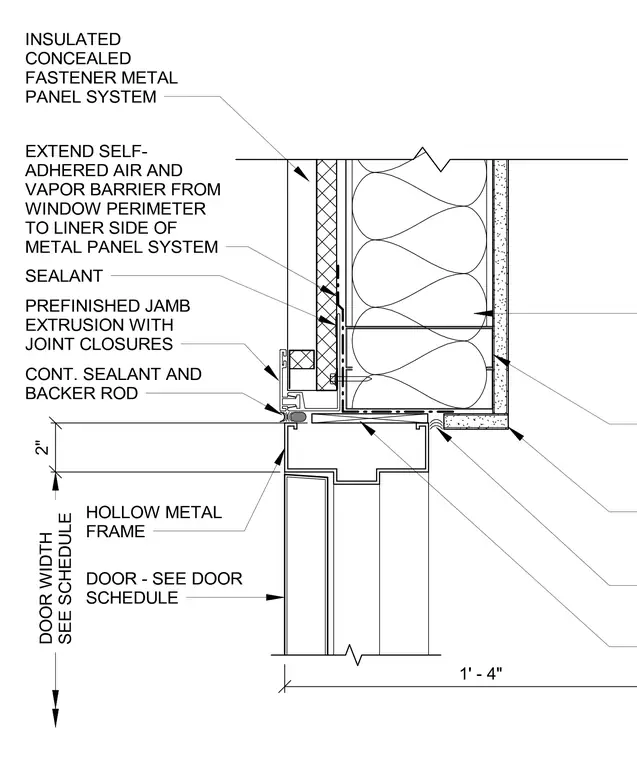

An insulated concealed fastener metal panel system transitions to a prefinished jamb extrusion with joint closures at the door frame. A self-adhered air and vapor barrier extends from the window perimeter to the liner side of the metal panel system. Continuous sealant and backer rod seal the joint between the prefinished jamb extrusion and the hollow metal frame. The hollow metal door is sized per the door schedule.
