A one-piece molded high-impact resistant fiberglass basin sits against wall surfaces protected by a 4-foot by 4-foot sheet of fiber-reinforced plastic with edge trim. Caulk and seal are applied along the basin-to-wall joints. A mop sink faucet is mounted on the wall above the basin at a height of 3 feet 8 inches from the floor, with overall wall protection extending 48 inches high.

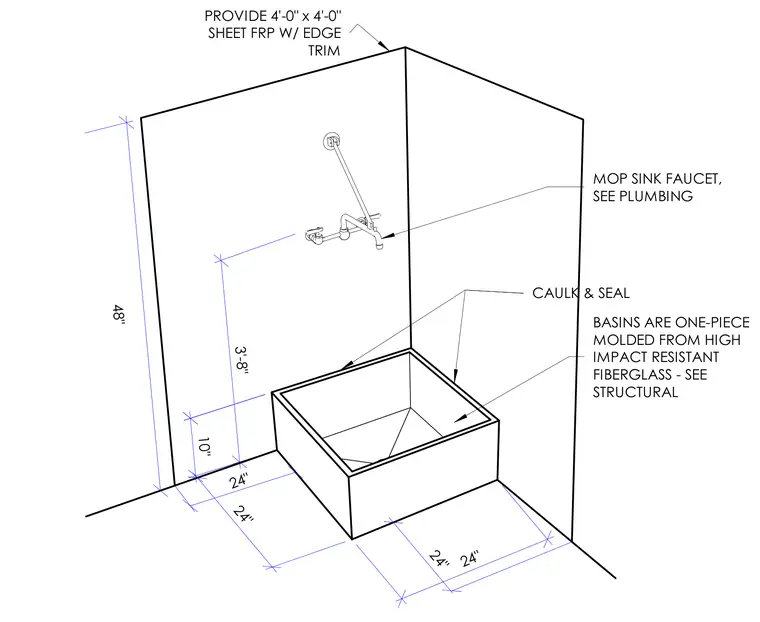

24" 10" 48" 24" 3'-8" PROVIDE 4'-0" x 4'-0" SHEET FRP W/ EDGE TRIM BASINS ARE ONE-PIECE MOLDED FROM HIGH IMPACT RESISTANT FIBERGLASS - SEE STRUCTURAL CAULK & SEAL MOP SINK FAUCET, SEE PLUMBING 24" 24" D
