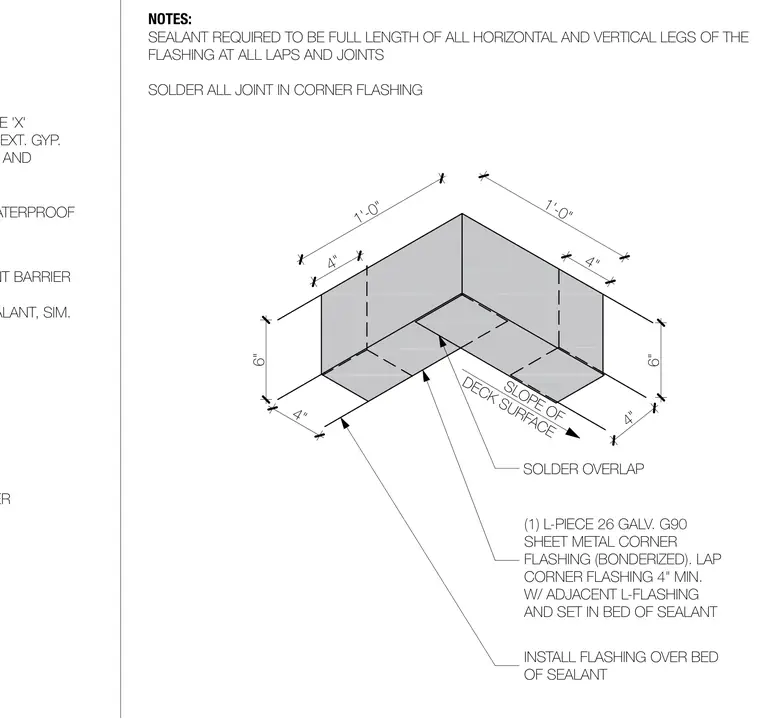

An inside corner flashing detail is constructed using a single L-piece of twenty-six gauge G90 galvanized bonderized sheet metal corner flashing set in a full bed of sealant. The flashing features four-inch minimum overlaps with adjacent L-flashings at all joints and is soldered at all interior corners. The backing assembly consists of two layers of five-eighths-inch type X glass-mat faced exterior gypsum board on each side at the top, tied together with a backer rod and sealant, protected by a weather-resistant self-adhering waterproof exterior finish barrier. Sealant is required along the full length of all horizontal and vertical legs of the flashing at all laps and joints.
WEATHER RESISTANT BARRIER SELF-ADHERING WATERPROOF EXTERIOR FINISH PER (2) LAYERS 5/8" TYPE 'X' GLASS-MAT FACED EXT. GYP. BD. EA. SIDE @ TOP AND BACKER ROD & SEALANT, SIM. SOLDER OVERLAP SLOPE OF DECK SURFACE (1) L-PIECE 26 GALV. G90 SHEET METAL CORNER FLASHING (BONDERIZED). LAP CORNER FLASHING 4" MIN. W/ ADJACENT L-FLASHING AND SET IN BED OF SEALANT INSTALL FLASHING OVER BED OF SEALANT SEALANT REQUIRED TO BE FULL LENGTH OF ALL HORIZONTAL AND VERTICAL LEGS OF THE FLASHING AT ALL LAPS AND JOINTS SOLDER ALL JOINT IN CORNER FLASHING NOTES: 1'-0" 1'-0" 4" 4" 6" 4" 4" 6"
