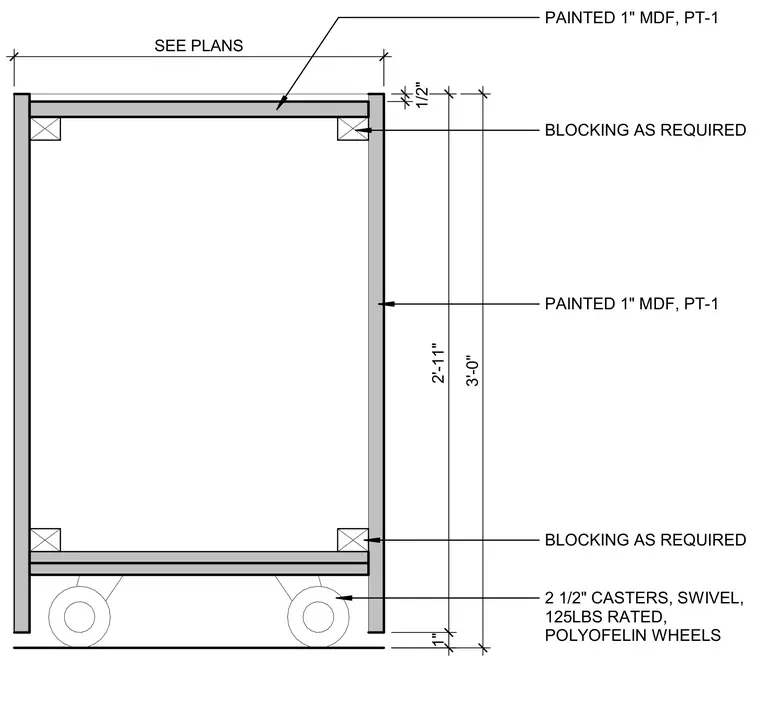

This mobile servery unit is fabricated from one-inch medium-density fiberboard finished with paint designated as PT-1. Internal wood blocking is installed as required to reinforce the panel joints. The assembly is supported on two-and-a-half-inch swivel casters equipped with one-hundred-twenty-five-pound rated polyolefin wheels. Overall dimensions and plan layouts are sized per plans.
2 1/2" CASTERS, SWIVEL, 125LBS RATED, POLYOFELIN WHEELS PAINTED 1" MDF, PT-1 PAINTED 1" MDF, PT-1 1" 2'-11" 3'-0" SEE PLANS 1/2" BLOCKING AS REQUIRED BLOCKING AS REQUIRED
