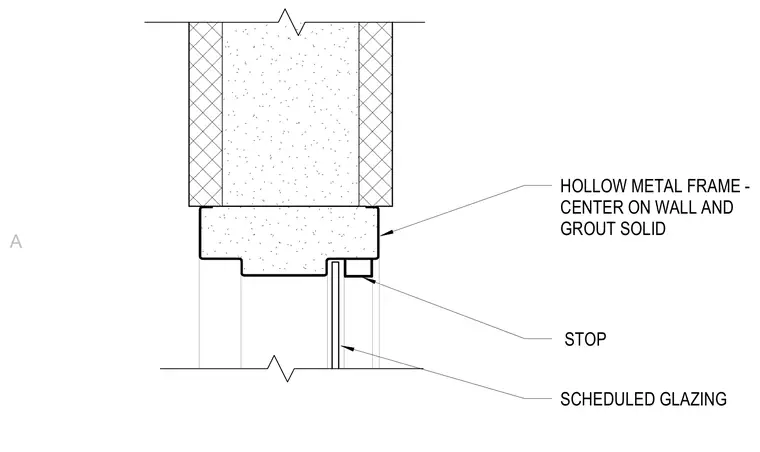

An interior hollow metal frame head condition is centered on a partition wall and grouted solid. A glass stop secures the scheduled glazing assembly below.
